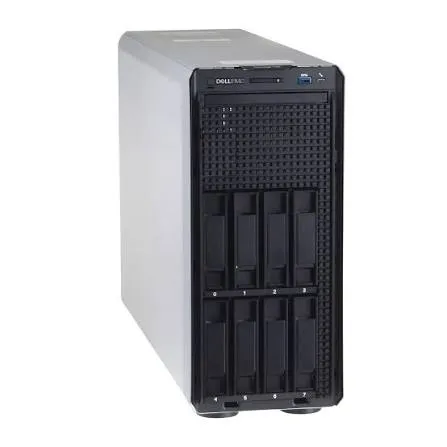

Dell PowerEdge T350

التفاصيل

• System Overview: Compact single-socket 4.5U tower server engineered for small-to-medium businesses, remote offices, branch office networks, and retail database management.
• Processor Architecture: Supports a single Intel Xeon E-2300 Series processor with up to 8 cores, or an Intel Pentium processor for entry-level compute tasks.
• Memory Architecture: Features 4 DDR4 DIMM slots supporting ECC Unbuffered DIMMs (UDIMM) up to 128 GB total capacity, with memory speeds reaching 3200 MT/s.
• Storage Drive Bays: Flexible front drive bay configurations accommodating up to 4 x 3.5-inch or up to 8 x 3.5-inch SAS/SATA (HDD/SSD) hot-swappable drives (max capacity up to 160 TB).
• Storage Controllers: Internal hardware RAID protection powered by Dell PERC options (PERC H755, H355, H345, or S150 software RAID), with optional BOSS-S2 module for boot-optimized hardware RAID M.2 SSDs.
• PCIe Expansion: Equipped with 4 PCIe slots, including 2 x Gen4 PCIe slots (x16 and x8 modes) and 2 x Gen3 PCIe slots for high-speed add-in network or storage expansion cards.
• Embedded Management & Security: Integrated Dell Remote Access Controller 9 (iDRAC9) for automated remote management, paired with Silicon Root of Trust, Secure Boot, and System Lockdown features.
• Network & I/O Connectivity: Dual integrated 1 GbE LOM ports (Broadcom BCM5720), a dedicated micro-USB iDRAC Direct front port, 2 x USB 3.0 ports, 5 x USB 2.0 ports, VGA, and a DB-9 serial interface.
• Power & Thermal Design: Redundant hot-plug power supply options (450W Bronze or 600W/700W Platinum/Titanium AC) housed in an enhanced thermal-efficient chassis that is 37% smaller than previous-generation models.
• Physical Footprint: Compact tower dimensions measuring 382.5 mm (H) x 175.0 mm (W) x 581.12 mm (D with bezel), weighing up to 25.34 kg in an 8-drive configuration.
